parglare parser

Prof. dr Igor Dejanović (igord at uns ac rs)

Kreirano 2019-11-29 Fri 16:01, pritisni ESC za mapu, m za meni, Ctrl+Shift+F za pretragu

Sadržaj

1 Osnovne osobine

2 Instalacija

2.1 Instalacija

  • Sa PyPI:
$ mkdir jsd
$ cd jsd
$ python -m venv venv
$ source venv/bin/activate
(venv) $ pip install parglare
Looking in indexes: https://pypi.python.org/simple/
Collecting parglare
  Using cached https://files.pythonhosted.org/packages/66/60/c1bd988a93f5c9114a53452913d51be9556cc56cd7fc9801bbbf03e561da/parglare-0.10.0-py2.py3-none-any.whl
Collecting click (from parglare)
  Using cached https://files.pythonhosted.org/packages/fa/37/45185cb5abbc30d7257104c434fe0b07e5a195a6847506c074527aa599ec/Click-7.0-py2.py3-none-any.whl
Installing collected packages: click, parglare
Successfully installed click-7.0 parglare-0.10.0

2.2 Instalacija razvojne verzije

  • Sa master grane:

    $ mkdir jsd
    $ cd jsd
    $ python -m venv venv
    $ source venv/bin/activate

    $ pip install https://github.com/igordejanovic/parglare/archive/master.zip
    Looking in indexes: https://pypi.python.org/simple/
    Collecting https://github.com/igordejanovic/parglare/archive/master.zip
      Downloading https://github.com/igordejanovic/parglare/archive/master.zip
         - 6.7MB 1.4MB/s
    Requirement already satisfied: click in ./venv/lib/python3.7/site-packages (from parglare==0.11.0.dev0) (7.0)
    Installing collected packages: parglare
      Running setup.py install for parglare ... done
    Successfully installed parglare-0.11.0.dev0


2.3 Instalacija za razvoj

  • Sa master grane iz kloniranog git repozitorijuma:

    $ mkdir jsd
    $ cd jsd
    $ python -m venv venv
    $ source venv/bin/activate

    $ git clone git@github.com:igordejanovic/parglare.git
    Cloning into 'parglare'...
    remote: Enumerating objects: 55, done.
    remote: Counting objects: 100% (55/55), done.
    remote: Compressing objects: 100% (44/44), done.
    remote: Total 6138 (delta 20), reused 29 (delta 9), pack-reused 6083
    Receiving objects: 100% (6138/6138), 7.60 MiB | 2.87 MiB/s, done.
    Resolving deltas: 100% (4065/4065), done.

    $ pip install -e parglare
    Looking in indexes: https://pypi.python.org/simple/
    Obtaining file:///home/igor/jsd/parglare
    Requirement already satisfied: click in ./venv/lib/python3.7/site-packages (from parglare==0.11.0.dev0) (7.0)
    Installing collected packages: parglare
      Running setup.py develop for parglare
    Successfully installed parglare


3 Upotreba

3.1 Kreiranje gramatike

grammar = r"""
E: E '+' E
 | E '-' E
 | E '*' E
 | E '/' E
 | '(' E ')'
 | number;

terminals
number: /\d+(\.\d+)?/;
"""

actions = {
    "E": [lambda _, n: n[0] + n[2],
          lambda _, n: n[0] - n[2],
          lambda _, n: n[0] * n[2],
          lambda _, n: n[0] / n[2],
          lambda _, n: n[1],
          lambda _, n: n[0]],
    "number": lambda _, value: float(value),
}

3.2 Parsiranje sa LR parserom

from parglare import Parser, Grammar
g = Grammar.from_string(grammar)
parser = Parser(g, actions=actions)

result = parser.parse("2 * 3 + 4 / 2 / 2")

print("Result = ", result)

Result =  14.0
  • Gramatika je višeznačna jer parser ne zna za prioritete i asocijativnosti.
  • Podrazumevano Parser klasa (LR parser) razrešava Shift/Reduce konflikte tako što preferira Shift operaciju (videti prefer_shifts).
  • Ovo dovodi do evaluacije s desna na levo.

3.3 Generalizovano parsiranje

  • Zamenom Parser klase sa GLRParser dobijamo generalizovano parsiranje gde će u slučaju višeznačnosti biti kreirana sva stabla parsiranja.
  • U slučaju gramatike aritmetičkih izraza dobićemo sva moguća rešenja.
from parglare import GLRParser, Grammar
g = Grammar.from_string(grammar)
parser = GLRParser(g, consume_input=True, actions=actions)

result = parser.parse("2 * 3 + 4 / 2 / 2")

print("Result = ", result)
print("Broj interpretacija = ", len(result))
Result =  [2.5, 3.5, 4.0, 5.0, 3.5, 10.0, 14.0, 10.0, 7.0, 8.0, 14.0, 14.0, 5.0, 3.5]
Broj interpretacija =  14
  • Broj interpretacija je Katalanov broj od n gde je n broj binarnih operacija u izrazu.

    1, 2, 5, 14, 42, 132, 429, 1430, 4862, 16796, 58786, 208012, 742900, 2674440...


3.4 Deklarativno razrešavanje višeznačnosti

  • Deklarativno razrešavanje višeznačnosti obavljamo unutar {} koje navodimo po produkciji.
  • Za asocijatinost koristimo ključne reči left (odnosno reduce) i right (odnosno shift).
grammar = r"""
E: E '+' E {left}
 | E '-' E {left}
 | E '*' E {left}
 | E '/' E {left}
 | '(' E ')'
 | number;

terminals
number: /\d+(\.\d+)?/;
"""
from parglare import GLRParser, Grammar
g = Grammar.from_string(grammar)
parser = GLRParser(g, actions=actions)

result = parser.parse("2 * 3 + 4 / 2 / 2")

print("Result = ", result)
Result =  [2.5]
  • Sada parser dolazi do jednog rešenja ali pogrešnog tako što evaluaciju radi s leva na desno ne uzimajući u obzir prioritet (preferira Reduce operaciju koja znači levu asocijativnost).
  • Potrebno je definisati prioritete operacija!

3.5 Prioriteti

grammar = r"""
E: E '+' E {left, 1}
 | E '-' E {left, 1}
 | E '*' E {left, 2}
 | E '/' E {left, 2}
 | '(' E ')'
 | number;

terminals
number: /\d+(\.\d+)?/;
"""
from parglare import GLRParser, Grammar
g = Grammar.from_string(grammar)
parser = GLRParser(g, actions=actions)

result = parser.parse("2 * 3 + 4 / 2 / 2")

print("Result = ", result)
Result =  [7.0]
  • Sada je rezultat ispravan.

3.6 Kompajliranje gramatike

  • Gramatika može biti unapred kompajlirana tj. LALR tablice mogu biti unapred kalkulisane.
  • Ovo je značajno kod većih gramatika gde vreme kreiranja tablica nije zanemarljivo.
$ pglr compile --help
Usage: pglr compile [OPTIONS] GRAMMAR_FILE

Options:
  --help  Show this message and exit.

To compile and check your grammar run:

    $ pglr compile <grammar_file>

$ pglr compile robot.pg
Compiling...
Grammar OK.
  • Tablica se smešta u fajl sa ekstenzijom .pgt i biće automatski učitana ukoliko postoji. Ukoliko ne postoji biće kreirana u vreme izvršavanja i upisana u .pgt fajl.

3.7 Greške u gramatici

  • Ako napravimo grešku pri pisanju gramatike parglare će nam dati tačnu lokaciju i šta na njoj očekuje.
$ pglr compile calc.pg
Error in the grammar file.
Error in file "calc.pg" at position 4,16 => "/' E  left*, 2}\n | E ".
Expected: { or | or ; or Name or RegExTerm or StrTerm

3.8 Detaljna analiza gramatike i mašine stanja/prelaza

$ pglr --debug compile calc.pg

 *** GRAMMAR ***
Terminals:
number STOP + - ^ EMPTY ) \d+(\.\d+)? ( EOF / *
NonTerminals:
S' E
Productions:
0: S' = E STOP
1: E = E + E
2: E = E - E
3: E = E * E
4: E = E / E
5: E = E ^ E
6: E = ( E )
7: E = number

 *** STATES ***
State 0
        0: S' = . E STOP   {}
        1: E = . E + E   {STOP, -, +, ^, ), /, *}
        2: E = . E - E   {STOP, -, +, ^, ), /, *}
        3: E = . E * E   {STOP, -, +, ^, ), /, *}
        4: E = . E / E   {STOP, -, +, ^, ), /, *}
        5: E = . E ^ E   {STOP, -, +, ^, ), /, *}
        6: E = . ( E )   {STOP, -, +, ^, ), /, *}
        7: E = . number   {STOP, -, +, ^, ), /, *}
    GOTO:
      E->1
    ACTIONS:
      (->SHIFT:2, number->SHIFT:3
...

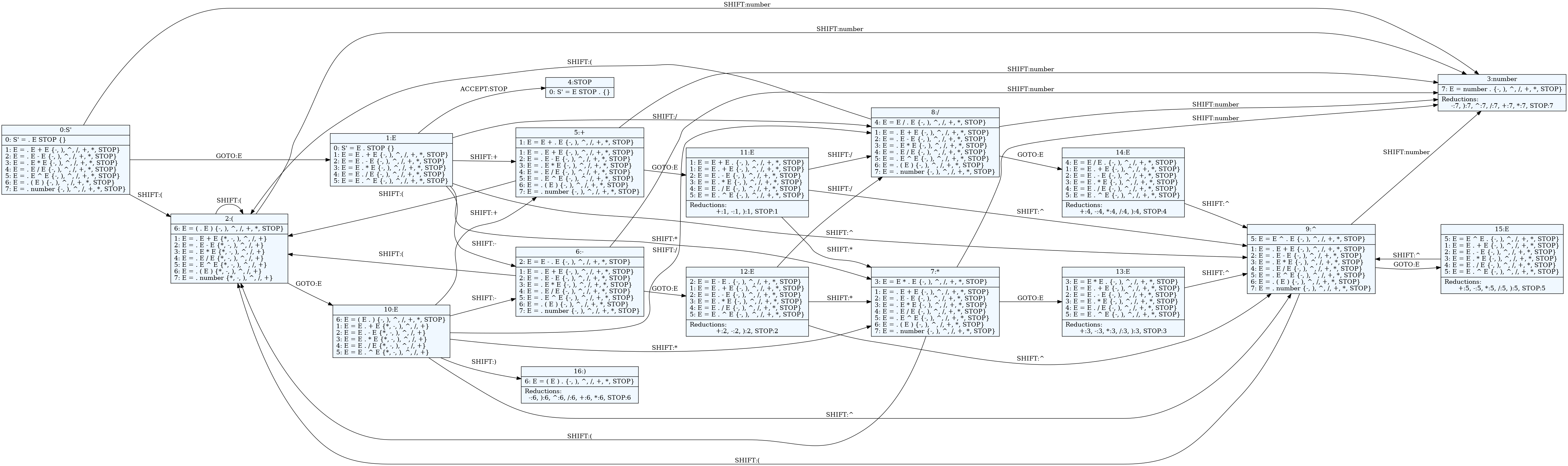

3.9 Vizualizacija mašine stanja prelaza

  • Mašinu stanja prelaza možemo grafički prikazati sa:
$ pglr viz calc.pg
Grammar OK.
Generating 'calc.pg.dot' file for the grammar PDA.
Use dot viewer (e.g. xdot) or convert to pdf by running 'dot -Tpdf -O calc.pg.dot'
  • Dobijamo .dot fajl koji možemo pregledati sa .dot pregledačima (npr. xdot) ili konvertovati u neki grafički format (npr. dot -Tpdf -O calc.pg.dot)

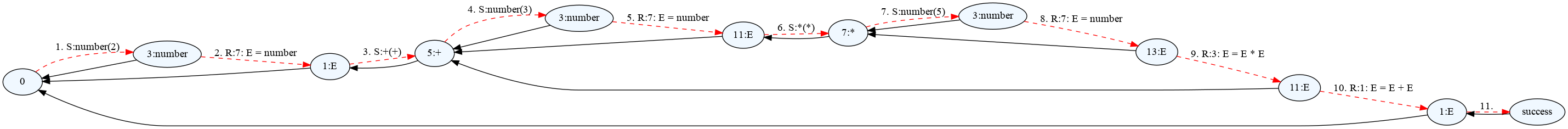

3.10 Vizualizacija GLR parsiranja

  • Kod GLR parsiranja moguća je vizualizacija grafičkog traga (tracing).
$ pglr trace --help
Usage: pglr trace [OPTIONS] GRAMMAR_FILE

Options:
  -f, --input-file PATH  Input file for tracing
  -i, --input TEXT       Input string for tracing
  --help                 Show this message and exit.
$ pglr trace calc.pg -i "2 + 3 * 5"


4 Primeri

4.1 calc parser

4.1.1 calc parser

grammar = r"""
E: E '+' E {left, 1}
 | E '-' E {left, 1}
 | E '*' E {left, 2}
 | E '/' E {left, 2}
 | '(' E ')'
 | number;

terminals
number: /\d+(\.\d+)?/;
"""

actions = {
    "E": [lambda _, n: n[0] + n[2],
          lambda _, n: n[0] - n[2],
          lambda _, n: n[0] * n[2],
          lambda _, n: n[0] / n[2],
          lambda _, n: n[1],
          lambda _, n: n[0]],
    "number": lambda _, value: float(value),
}
from parglare import Parser, Grammar
g = Grammar.from_string(grammar)
parser = Parser(g, actions=actions)

result = parser.parse("2 * 3 + 4 / 2 / 2")

print("Result = ", result)
Result =  7.0

4.1.2 Zadaci za vežbu

  1. Proširiti calc primer sa operacijom stepenovanja (simbol ^) koja ima najviši prioritet i desno je asocijativna.
  2. Proširiti calc primer sa unarnom operacijom faktorijel (simbol !) koja ima najviši prioritet.

    x! = x * (x-1) * ... * 1

  3. Dodati mogućnost definisanja varijabli i nihove upotrebe u calc izrazima:

    a = 4
    b = 8

    a * 2 / b^a^2 + b * a!

    • Probati uraditi samostalno. Rešenje je u examples/calc folderu.
  4. Dodati podršku za funkcije oblika ime_funkcije(param1, param2...). Parser treba da parsira proizvoljan naziv funkcije i proizvoljan broj parametara. Javiti grešku ukoliko funkcija nije definisana. Podržati izračunavanje vrednosti za proizvoljne funkcije iz Python math modula.

4.2 Robot jezik

4.2.1 Gramatika

  • Videti primer u folderu examples/robot.

Fajl program.rbt

begin
  initial 3, 1
  up 4          // go up 4 steps
  left 9
  down          // step is optional
  right 1
end

Fajl robot.pg

program: "begin" commands=command* "end";
command: initial | move;
initial: INITIAL x=INT "," y=INT;
move: direction=direction steps=INT?;
direction: "up" | "down" | "left" | "right";

// Support for C-like comments
LAYOUT: LayoutItem | LAYOUT LayoutItem;
LayoutItem: WS | Comment | EMPTY;

terminals
INT: /\d+/;
INITIAL: "initial";
WS: /\s+/;
Comment: /\/\/.*/;

4.2.2 Akcije

import os
from parglare import Grammar, Parser
from parglare import get_collector

action = get_collector()


@action
def INT(_, value):
    return int(value)


@action
def initial(context, nodes, x, y):
    print("Robot initial position set to: {}, {}".format(x, y))
    # We use context.extra to keep robot position state.
    context.extra = (x, y)


@action
def program(context, nodes, commands):
    return context.extra
@action
def move(context, nodes, direction, steps):
    steps = 1 if steps is None else steps
    print("Moving robot {} for {} steps.".format(direction, steps))

    move = {
        "up": (0, 1),
        "down": (0, -1),
        "left": (-1, 0),
        "right": (1, 0)
    }[direction]

    # Calculate new robot position
    x, y = context.extra
    context.extra = (x + steps * move[0], y + steps * move[1])

4.2.3 Pokretanje


def main(debug=False):
    this_folder = os.path.dirname(__file__)
    g = Grammar.from_file(os.path.join(this_folder, 'robot.pg'),
                          debug=debug, debug_colors=True)
    parser = Parser(g, actions=action.all, debug=debug,
                    debug_colors=True)

    end_position = parser.parse_file(os.path.join(this_folder, 'program.rbt'))

    print("Robot stops at position: {}".format(end_position))


if __name__ == "__main__":
    main(debug=False)
Robot initial position set to: 3, 1
Moving robot up for 4 steps.
Moving robot left for 9 steps.
Moving robot down for 1 steps.
Moving robot right for 1 steps.
Robot stops at position: (3, 1)

4.2.4 Zadaci za vežbu

  1. Dodati mogućnost kretanja po dijagonali. Na primer:

    begin
      initial 5, 8
      up left 2
      down left 5
      down 5
    end

  2. Dodati for petlju:

    begin
        initial 4, 7
        for i in 1..10
        begin
          down 3
          down right i
        end
     end

  1. Dodati koncept tekuće lokacije (ugrađene promenjive robotx i roboty), operacije poređenja <, >, =, i iskaz if:

    begin
        initial 4, 7
        for i in 1..10
        begin
          down 3
          if robotx > 4 up 5
          down right i
          if roboty < 3
          begin
             left 10
             down
          end
        end
     end
