textX

Prof. dr Igor Dejanović (igord at uns ac rs)

Kreirano 2019-12-05 Thu 20:32, pritisni ESC za mapu, m za meni, Ctrl+Shift+F za pretragu

Sadržaj

1. Osnovne osobine
2. Arhitektura
3. Instalacija
4. Upotreba
5. Primeri
6. Napredne tehnike - pyFlies
7. Podrška u editorima
8. Veče džeza i slobodnih formi - improvizacije

1 Osnovne osobine

100% Python kod
MIT licenca
Istovremeno definisanje gramatike i meta-modela - inspirisan sa Xtext
Automatska konstrukcija modela - podrška za razrešavane referenci
Podrška za veze tipa celina-deo
Kontrola parsiranja (whitespaces, case, keywords…)
Postprocesiranje objekata modela ili celog modela
Modularizacija gramatika - import
Vizualizacija modela i meta-modela
Dokumentacija i tutorijali dostupni na https://textx.github.io/textX/

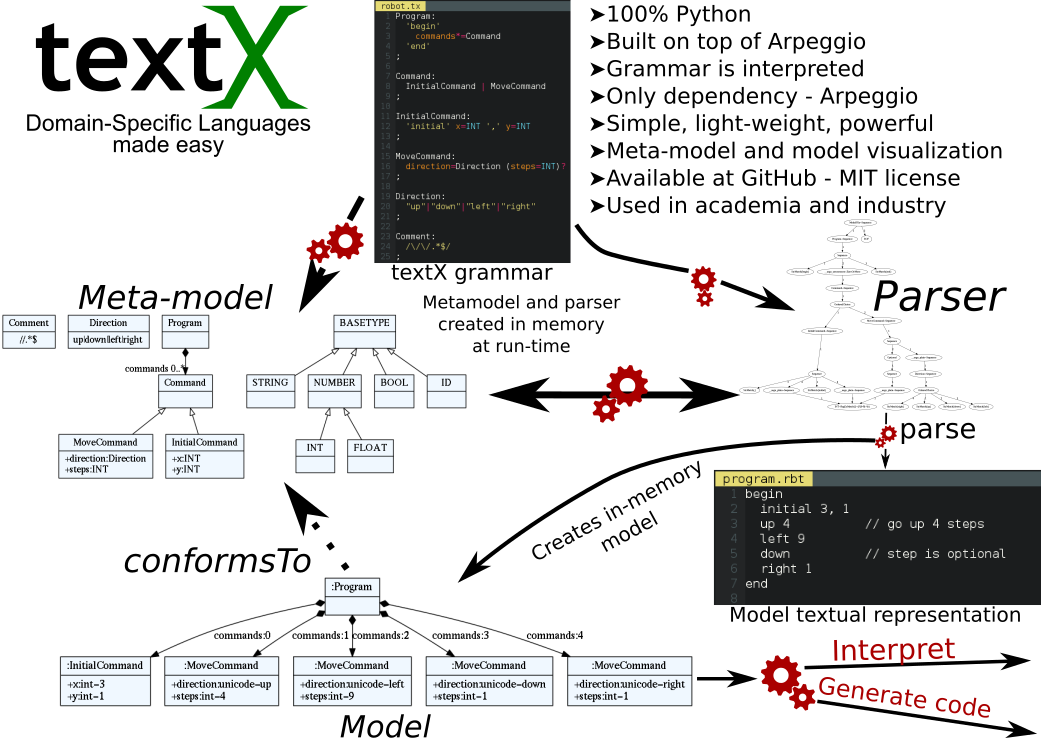

2 Arhitektura

3 Instalacija

3.1 Instalacija

Sa PyPI

$ mkdir ntp
$ cd ntp
$ python -m venv venv
$ source venv/bin/activate
$ pip install textX
Looking in indexes: https://pypi.python.org/simple/
Collecting textX
  Using cached https://files.pythonhosted.org/packages/ff/df/33442dfb9ddfc2a9a84d60915ccf0602a5b04fdc46f523a7e939e588cd59/textX-1.8.0-py2.py3-none-any.whl
Collecting Arpeggio>=1.9.0 (from textX)
  Using cached https://files.pythonhosted.org/packages/ec/5c/9cccf42a59406476f81993158376947a1487e3fcd84c01914c1ad17e54e1/Arpeggio-1.9.0-py2.py3-none-any.whl
Installing collected packages: Arpeggio, textX
Successfully installed Arpeggio-1.9.0 textX-1.8.0

3.2 Instalacija razvojne verzije

$ mkdir ntp
$ cd ntp
$ python -m venv venv
$ source venv/bin/activate
$ pip install https://github.com/textX/textX/archive/master.zip                                                                                                                                         1 ↵
Looking in indexes: https://pypi.python.org/simple/
Collecting https://github.com/textX/textX/archive/master.zip
  Downloading https://github.com/textX/textX/archive/master.zip
     / 6.3MB 6.0MB/s
Collecting Arpeggio>=1.9.0 (from textX==1.8.0)
  Using cached https://files.pythonhosted.org/packages/ec/5c/9cccf42a59406476f81993158376947a1487e3fcd84c01914c1ad17e54e1/Arpeggio-1.9.0-py2.py3-none-any.whl
Collecting click==7.0 (from textX==1.8.0)
  Using cached https://files.pythonhosted.org/packages/fa/37/45185cb5abbc30d7257104c434fe0b07e5a195a6847506c074527aa599ec/Click-7.0-py2.py3-none-any.whl
Installing collected packages: Arpeggio, click, textX
  Running setup.py install for textX ... done
Successfully installed Arpeggio-1.9.0 click-7.0 textX-1.8.0

3.3 Instalacija za razvoj

$ mkdir ntp
$ cd ntp
$ python -m venv venv
$ source venv/bin/activate
$ git clone git@github.com:textX/textX.git
Cloning into 'textX'...
Enter passphrase for key '/home/igor/.ssh/id_rsa':
remote: Enumerating objects: 65, done.
remote: Counting objects: 100% (65/65), done.
remote: Compressing objects: 100% (56/56), done.
remote: Total 7649 (delta 23), reused 32 (delta 9), pack-reused 7584
Receiving objects: 100% (7649/7649), 9.20 MiB | 2.21 MiB/s, done.
Resolving deltas: 100% (4657/4657), done.
$ pip install -e textX
Looking in indexes: https://pypi.python.org/simple/
Obtaining file:///home/igor/ntp/textX
Requirement already satisfied: Arpeggio>=1.9.0 in ./venv/lib/python3.7/site-packages (from textX==1.8.0) (1.9.0)
Requirement already satisfied: click==7.0 in ./venv/lib/python3.7/site-packages (from textX==1.8.0) (7.0)
Installing collected packages: textX
  Found existing installation: textX 1.8.0
    Uninstalling textX-1.8.0:
      Successfully uninstalled textX-1.8.0
  Running setup.py develop for textX
Successfully installed textX

4 Upotreba

4.1 Gramatika = meta-model + konkretna sintaksa

HelloWorldModel:
  'hello' to_greet+=Who[',']
;

Who:
  name = /[^,]*/
;

from textx import metamodel_from_file
hello_meta = metamodel_from_file('hello.tx')


4.2 Model = program

hello World, Solar System, Universe

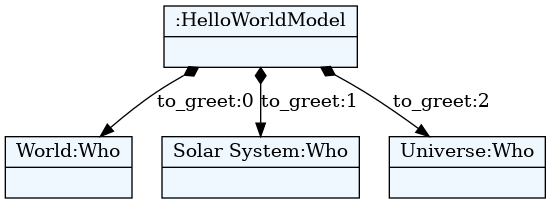

4.3 Parsiranje - instanciranje modela

example_hello_model = hello_meta.model_from_file('example.hello')


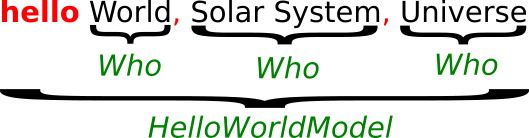

Model je graf Python objekata čija struktura je u skladu sa gramatikom (npr. HelloWorldModel objekat sadrži Python listu to_greet).
Model možemo dalje interpretirati, analizirati, generisati kod…

4.4 Provera i vizualizacija meta-modela

textX će pri parsiraju gramatike prijaviti sintaksne greške.

Ako želimo možemo proveriti gramatiku u toku razvoja:

textx check hello.tx

/home/igor/repos/igordejanovic.github.io/courses/tech/textX/hello.tx: OK.

U slučaju greške biće prijavljena tačna lokacija.

Error in meta-model file.
Expected 'abstract_rule_ref' at position (6, 9) => ':   name |*= /[^,]*/ '.

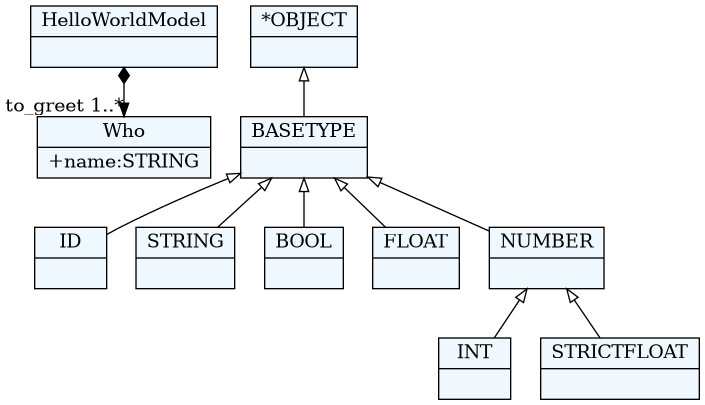

ili vizualizovati

textx list-generators

any -> dot                    textX                         Generating dot visualizations from arbitrary models
textX -> dot                  textX                         Generating dot visualizations from textX grammars
textX -> PlantUML             textX                         Generating PlantUML visualizations from textX grammars

textx generate hello.tx --target dot

Generating dot target from models:
/home/igor/repos/igordejanovic.github.io/courses/tech/textX/hello.tx
-> /home/igor/repos/igordejanovic.github.io/courses/tech/textX/hello.dot
   To convert to png run "dot -Tpng -O hello.dot"

4.5 Robot primer

fajl robot.tx

Program:
  'begin'
    commands*=Command
  'end'
;

Command:
  InitialCommand | MoveCommand
;

InitialCommand:
  'initial' x=INT ',' y=INT
;

MoveCommand:
  direction=Direction (steps=INT)?
;

Direction:
  "up"|"down"|"left"|"right"
;

Comment:
  /\/\/.*$/
;

fajl program.rbt

begin
    initial 3, 1
    up 4
    left 9
    down
    right 1
end

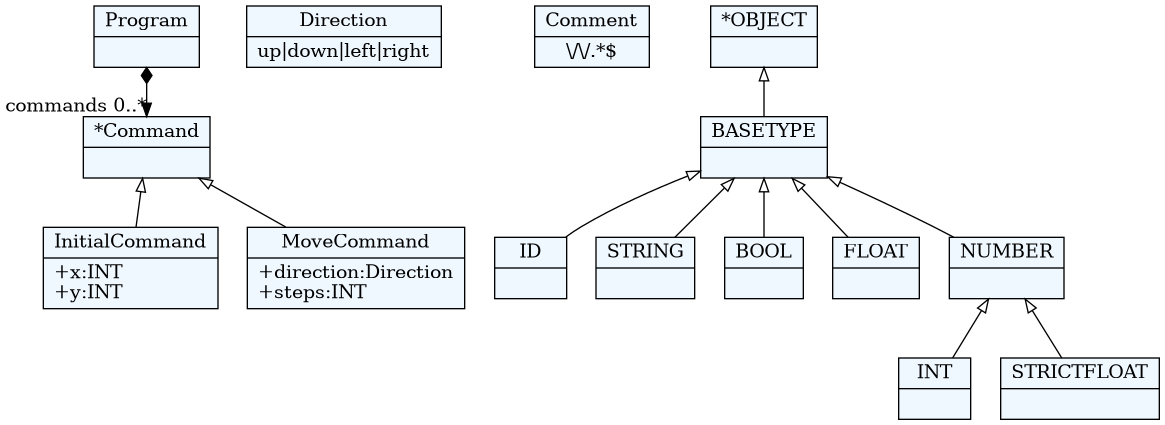

4.6 Instanciranje meta-modela

from textx import metamodel_from_file
robot_mm = metamodel_from_file('robot.tx')

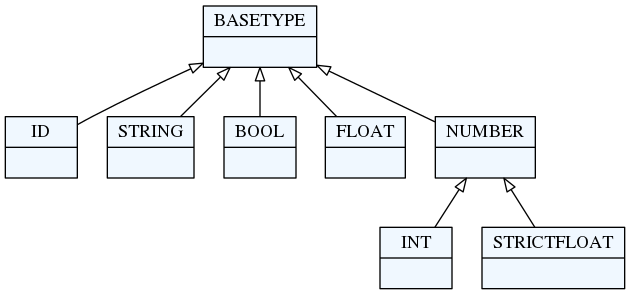

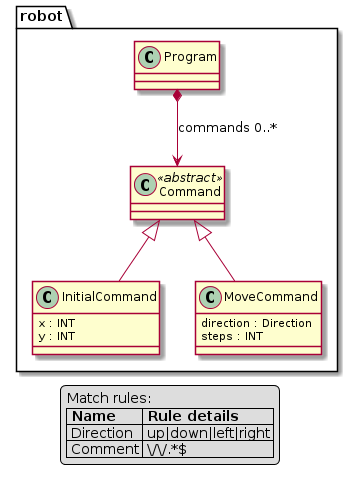

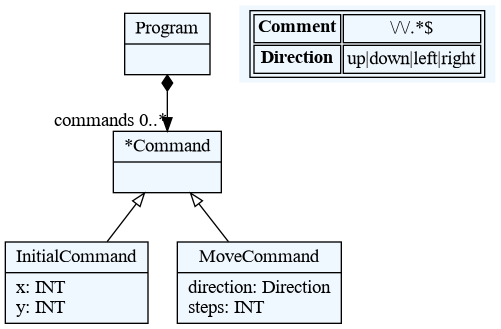

textx generate robot.tx --target dot
dot -Tpng -O robot.dot

4.7 Parsiranje i instanciranje modela

robot_model = robot_mm.model_from_file('program.rbt')

begin
    initial 3, 1
    up 4
    left 9
    down
    right 1
end

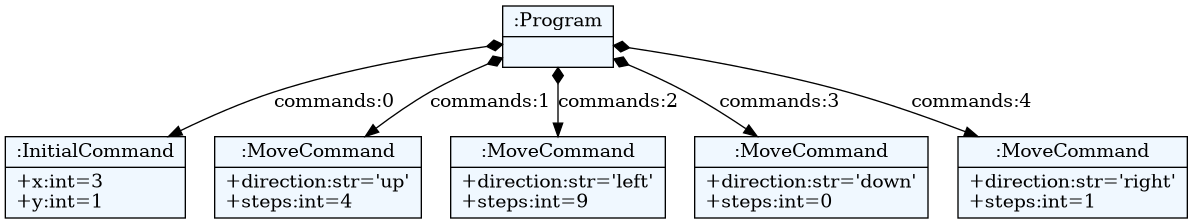

textx generate program.rbt --grammar robot.tx --target dot
dot -Tpng -O program.dot

4.8 Šta raditi sa modelom?

Interpretiranje
Generisanje koda
Razne vrste analize i transformacije

4.9 Interpretiranje Robot modela

class Robot(object):

    def __init__(self):
        # Initial position is (0,0)
        self.x = 0
        self.y = 0

    def __str__(self):
        return "Robot position is {}, {}.".format(self.x, self.y)

4.10 Interpretiranje Robot modela

def interpret(self, model):

    # model is an instance of Program
    for c in model.commands:

        if c.__class__.__name__ == "InitialCommand":
            print("Setting position to: {}, {}".format(c.x, c.y))
            self.x = c.x
            self.y = c.y
        else:
            dir = c.direction
            print("Going {} for {} step(s).".format(dir, c.steps))

            move = {
                "up": (0, 1),
                "down": (0, -1),
                "left": (-1, 0),
                "right": (1, 0)
            }[dir]

            # Calculate new robot position
            self.x += c.steps * move[0]
            self.y += c.steps * move[1]

4.11 Interpretacija Robot modela

robot = Robot()
robot.interpret(robot_model)

begin
    initial 3, 1
    up 4
    left 9
    down
    right 1
end

Setting position to: 3, 1
Robot position is 3, 1.
Going up for 4 step(s).
Robot position is 3, 5.
Going left for 9 step(s).
Robot position is -6, 5.
Going down for 0 step(s).
Robot position is -6, 5.
Going right for 1 step(s).
Robot position is -5, 5.

Problem: Ako ne zadamo korak podrazumevano je 0 (textX definiše default vrednosti za bazične tipove).

4.12 Object processor

def move_command_processor(move_cmd):
    """
    This is object processor for MoveCommand instances.
    It implements a default step of 1 in case not given
    in the program.
    """

    if move_cmd.steps == 0:
        move_cmd.steps = 1

MoveCommand:
  direction=Direction (steps=INT)?
;

Registracija procesora na meta-modelu:

# Register object processor for MoveCommand
robot_mm.register_obj_processors({'MoveCommand': move_command_processor})

Sada se robot ponaša ispravno.

Setting position to: 3, 1
Robot position is 3, 1.
Going up for 4 step(s).
Robot position is 3, 5.
Going left for 9 step(s).
Robot position is -6, 5.
Going down for 1 step(s).
Robot position is -6, 4.
Going right for 1 step(s).
Robot position is -5, 4.

5 Primeri

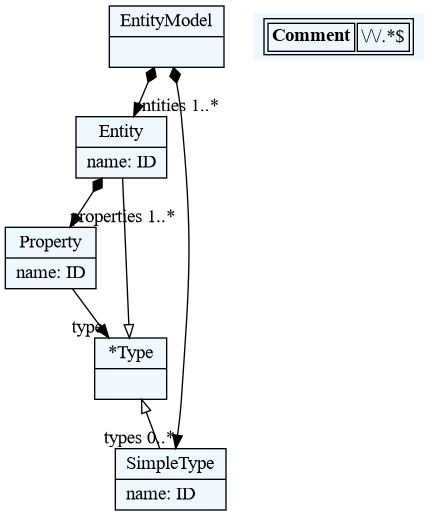

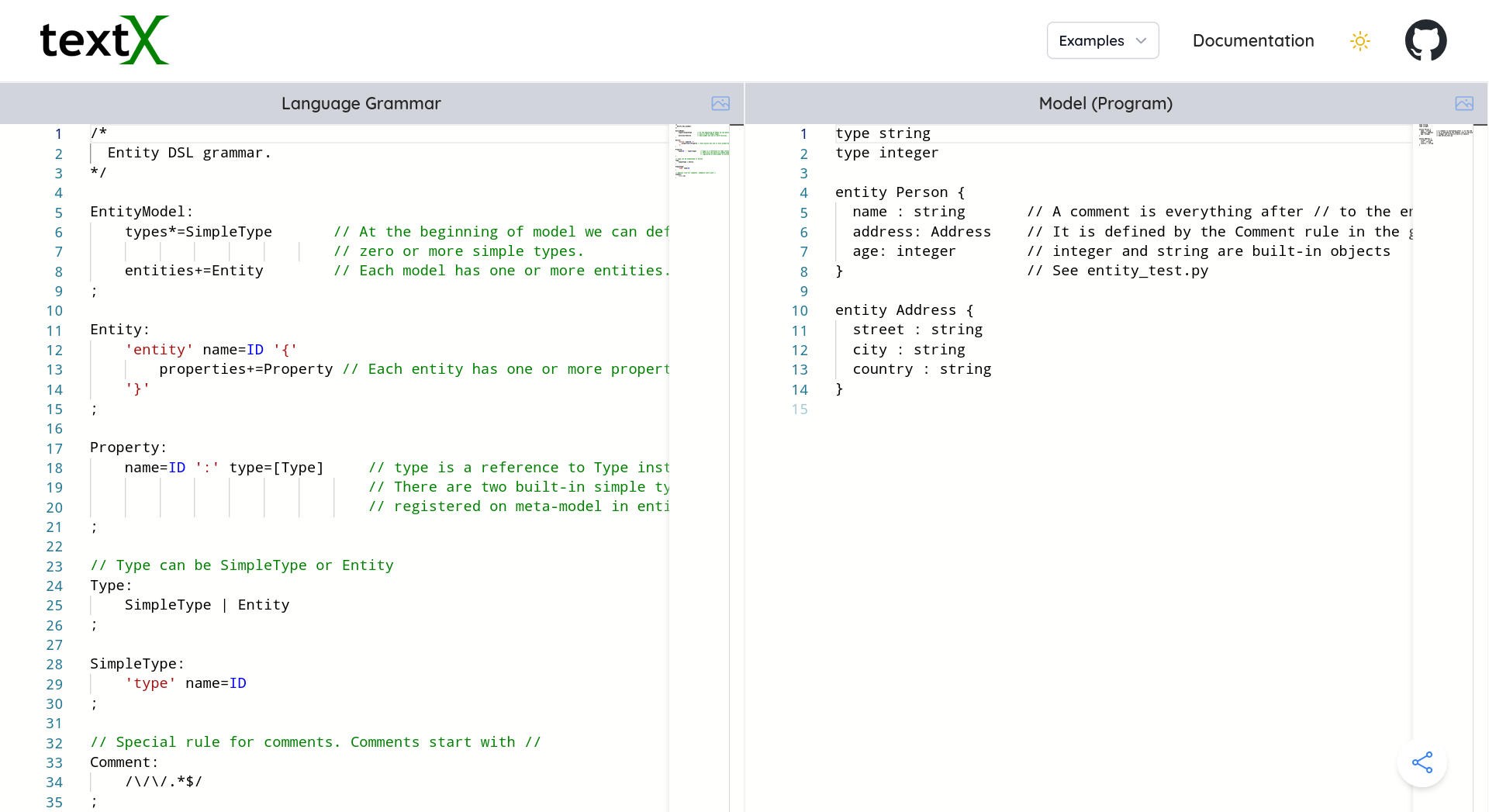

5.1 Generisanje koda - Entity primer

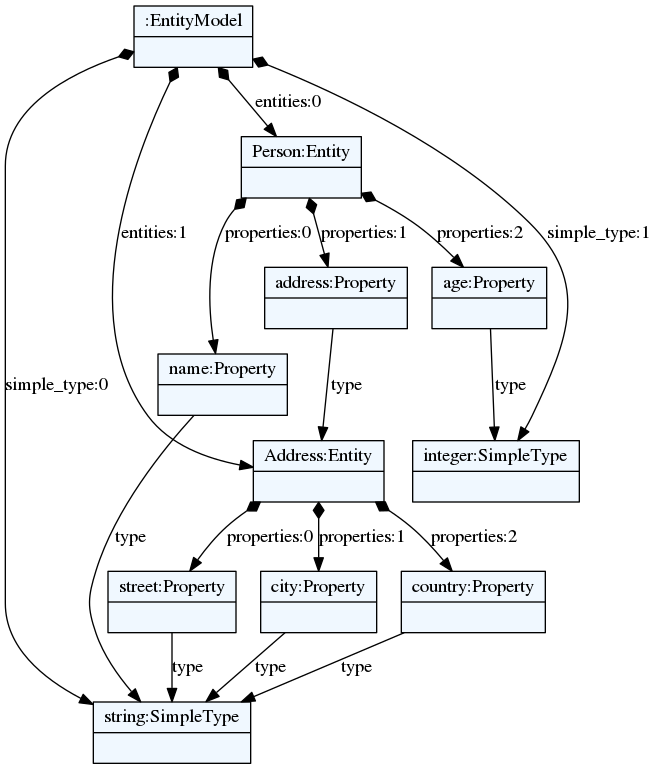

Referenciranje drugih objekata.
Upotreba obrađivača šablona (Template Engines) za generisanje koda.
http://textx.github.io/textX/stable/tutorials/entity/

5.2 State Machine

Video tutorial
http://textx.github.io/textX/stable/tutorials/state_machine/

5.3 Izrada mini kompajlera - ppci

6 Napredne tehnike - pyFlies

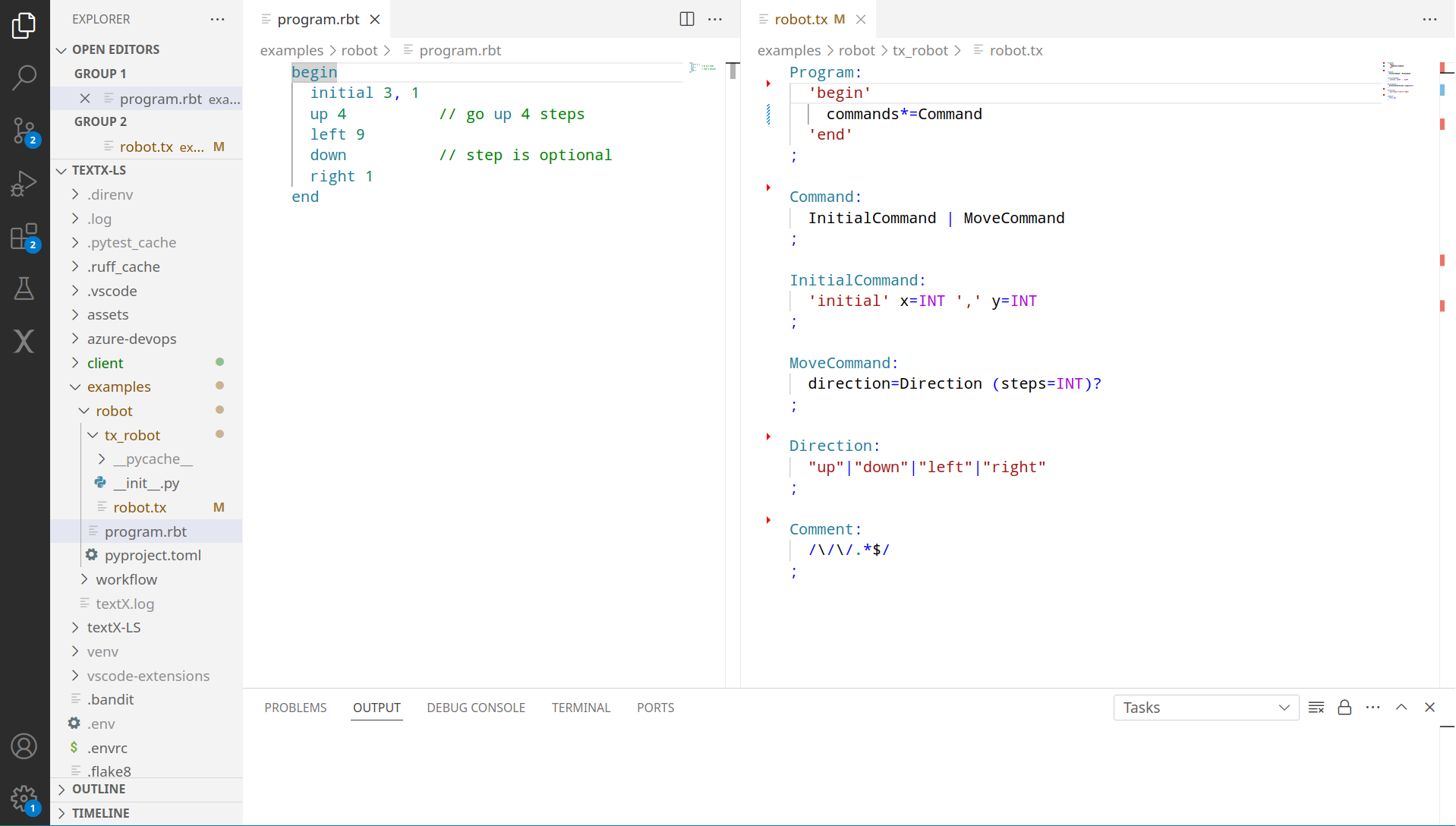

7 Podrška u editorima

Visual Studio Code (IntelliSense, Outline, Code highlighting)
- Tekući razvoj - Language Server Protocol
Mod za Emacs
Ninja IDE
