The pglr command

pglr CLI command is available when parglare is installed. This command is used to debug the grammar, visualize the LR automata and make a visual trace of the GLR parsing.

To get the help on the command run:

$ pglr --help
Usage: pglr [OPTIONS] COMMAND [ARGS]...

  Command line interface for working with parglare grammars.

  --debug / --no-debug    Debug/trace output
  --colors / --no-colors  Output coloring
  --help                  Show this message and exit.


Checking the grammar

check command is used for grammar checking. To get help on the command run:

$ pglr check --help
Usage: pglr check [OPTIONS] GRAMMAR_FILE

  --help  Show this message and exit.

To check your grammar run:

$ pglr check <grammar_file>

where <grammar_file> is the path to your grammar file.

If there is no error in the grammar you will get Grammar OK. message. In case of error you will get error message with the information what is the error and where it is in the grammar.

For example:

$ pglr check
Error in the grammar file.
Error in file "" at position 4,16 => "/' E  left*, 2}\n | E ".
Expected: { or | or ; or Name or RegExTerm or StrTerm

Getting detailed information

To get the detailed information on the grammar run pglr command in the debug mode.

$ pglr --debug check

*** GRAMMAR ***
number STOP + - ^ EMPTY ) \d+(\.\d+)? ( EOF / *
S' E
0: S' = E STOP
1: E = E + E
2: E = E - E
3: E = E * E
4: E = E / E
5: E = E ^ E
6: E = ( E )
7: E = number

*** STATES ***

State 0
        0: S' = . E STOP   {}
        1: E = . E + E   {STOP, -, +, ^, ), /, *}
        2: E = . E - E   {STOP, -, +, ^, ), /, *}
        3: E = . E * E   {STOP, -, +, ^, ), /, *}
        4: E = . E / E   {STOP, -, +, ^, ), /, *}
        5: E = . E ^ E   {STOP, -, +, ^, ), /, *}
        6: E = . ( E )   {STOP, -, +, ^, ), /, *}
        7: E = . number   {STOP, -, +, ^, ), /, *}


     (->SHIFT:2, number->SHIFT:3


This will give enumerated all the productions of your grammars and all the states. For each state you get the LR items with lookahead, elements of GOTO table and elements of ACTIONS table. In the previous example state 0 will have a transition to state 1 when E is reduced, transition to state 2 if ( can be shifted and transition to state 3 if number can be shifted.

In addition you will get a detailed information on all Shift/Reduce and Reduce/Reduce conflicts which makes much easier to see the exact cause of ambiguity and to use disambiguation rules to resolve the conflicts or to go with GLR if the grammar is not LR(1).


You can use --debug option with any pglr command to put the parser in the debug mode and get a detailed output.

Visualizing LR automata

To visualize your automata with all the states and possible transitions run the command:

$ pglr viz
Grammar OK.
Generating '' file for the grammar PDA.
Use dot viewer (e.g. xdot) or convert to pdf by running 'dot -Tpdf -O'

As given in the output you will get a dot file which represents LR automata visualization. You can see this diagram using dot viewers (e.g. xdot) or you can transform it to other file formats using the dot tool (you'll have to install Graphviz software for that).

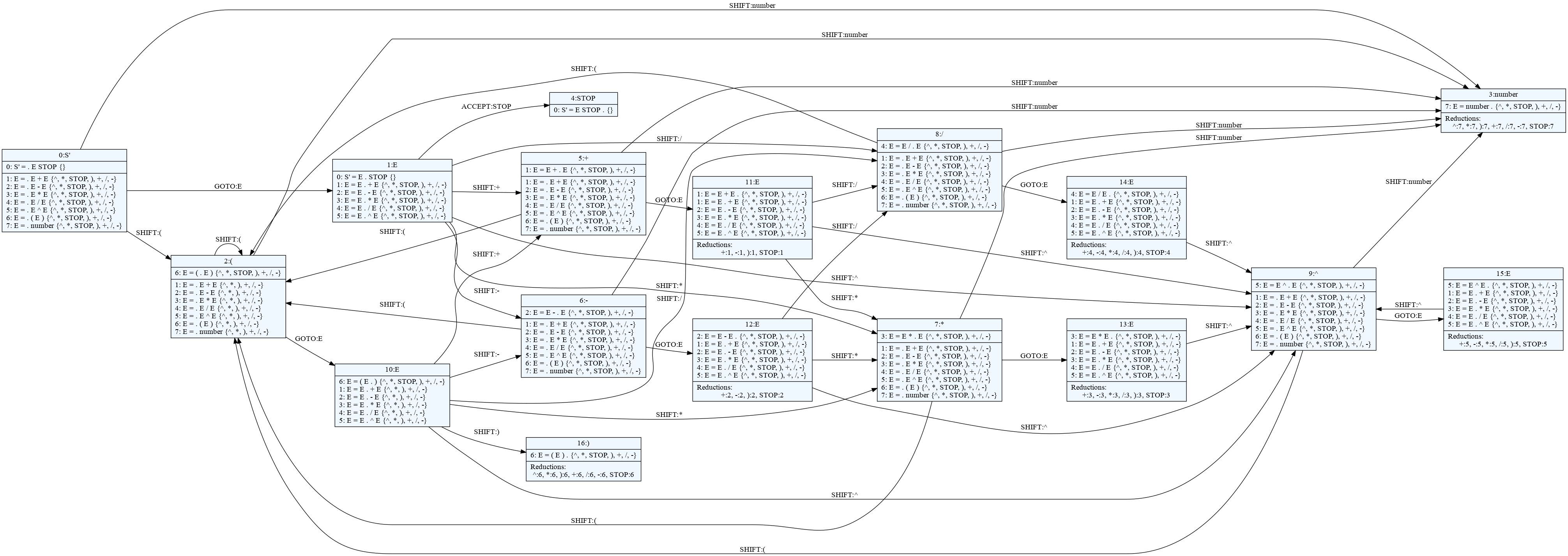

This is an example of LR automata visualization for the calc grammar from the quick intro (click on the image to enlarge):

Calc LR automata

Tracing GLR parsing

GLR parser uses a graph-like stack (Graph-Structured Stack - GSS) and to understand what's going on during GLR operation GLR parser and pglr command provide a way to trace the GSS.

To get a help on the trace command run:

$ pglr trace --help
Usage: pglr trace [OPTIONS] GRAMMAR_FILE

  -f, --input-file PATH  Input file for tracing
  -i, --input TEXT       Input string for tracing
  --help                 Show this message and exit.

You either give your input using file (-f) or using string provided in the command (-i), but not both.

To run the GLR trace for the calc grammar and some input:

$ pglr trace -i "2 + 3 * 5"

The -i switch tells the command to treat the last parameter as the input string to parse.


Since the GSS can be quite large and complex for larger inputs the advice is to use a minimal input that will exibit the intended behaviour for a visualization to be usable.

The trace sub-command implies --debug switch so the parser will run in the debug mode and will produce the detailed output on the grammar, LR automata and the parsing process.

Additionally, a dot file will be created, with the name if input is given on command line or <input_file_name> if input is given as a file. The dot file can be visualized using dot viewers or transformed to other file formats using the dot tool.

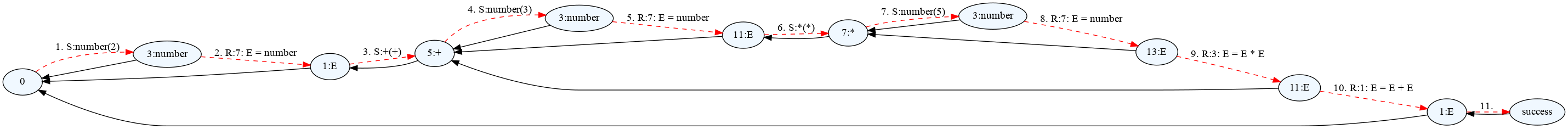

For the command above, GLR trace visualization will be (click on the image to enlarge):

Calc GLR trace

Dotted red arrows represent each step in the parsing process. They are numbered consecutively. After the ordinal number is the action (either S-Shift or R-reduce). For shift action a grammar symbol and the shifted value is given. For reduction a production is given and the resulting head will have a parent node closer to the beginning.

Black solid arrows are the links to the parent node in the GSS.

There are also dotted orange arrows (not shown in this example) that shows dropped empty reductions. Dropping happens when parser has found a better solution (i.e. a solution with fewer empty reductions).


To produce GLR parser visual trace from code your must put the parser in debug mode by setting debug to True and enable visual tracing by setting debug_trace to True.
